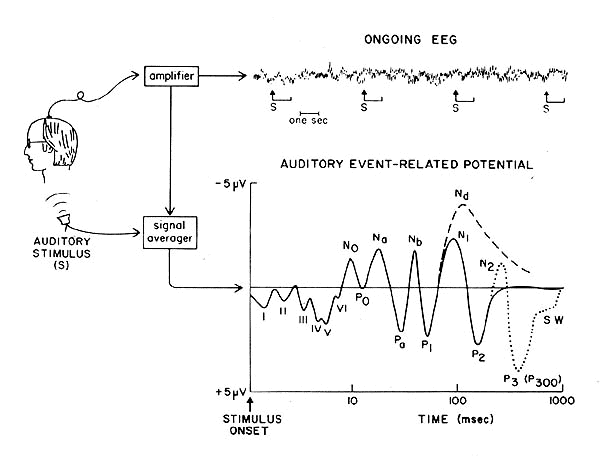

Figure 1

Idealized form of the averaged event-related potential to a sequence of auditory stimuli (S). Component numbers represent approximate latency X 100 msec. Other labels refer to early brainstem responses (I to VI), midlatency components (No, Po, Na, Pb, Nb), and slow wave ((SW). Note log units on time axis. (From ref. 54, with permission.)
