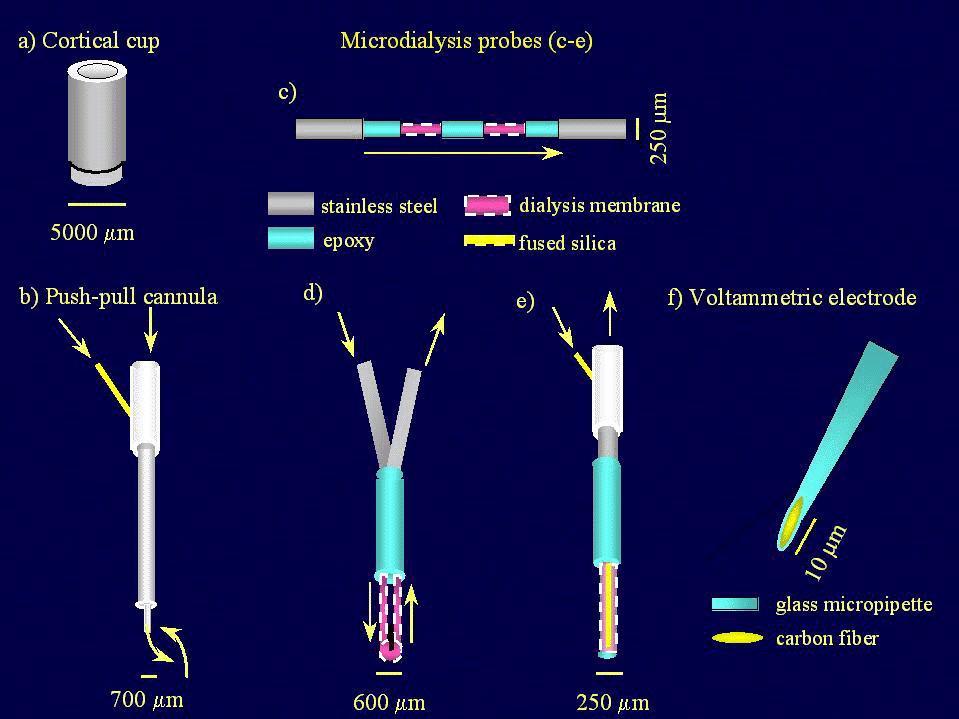

Figure 2.

Methods for measuring transmitter release in vivo. Shown schematically are a) cortical cup, b) push-pull cannula, c) transverse microdialysis probe, d) U-shaped microdialysis probe, e) vertical concentric microdialysis probe, and f) carbon fiber voltammetric electrode. Scale bars represent the approximate size of these devices as used to study neurochemical events in the extracellular fluid of rat.
